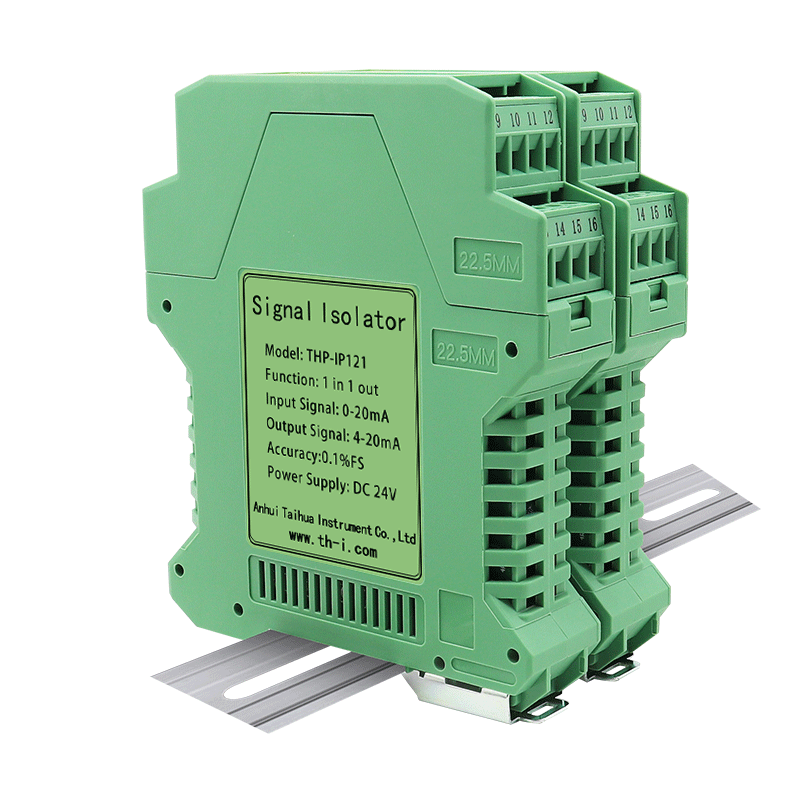

1 in 1 out, input 0-20mA, output 4-20mA, DC24V power supply,
Three-wire isolation, guide rail installation, high precision, high linearity, low temperature drift.
THP
1
DC 0-20mA
1
4-20mA
DC24V
Input end
Input signal: 0-20mA
Distribution voltage: Open circuit voltage ≤25VDC Voltage at 20mA:>15V
Distribution working current: <25mA
Input impedance: ≤50Ω
Output end
Output signal: 4-20mA
Output load resistance: RL≤500Ω(output current signal)
Basic parameter
Power supply: DC24V, ±10% voltage range :DC18~32V
Consumption current: ≤50mA(1 in 1 out, 24V power supply, 20mA output)
Basic accuracy: 0.1%F.S
Temperature drift: 0.005%F.S/℃ (-20℃~+55℃)
Response time: ≤10mS(0-90%)(TYP)
Insulation strength: 1500V AC/1min (Between input, output and power supply)
Insulation resistance: ≥100MΩ (Input, output, power supply)
Operating temperature range: -20~+55℃
Electromagnetic compatibility: According to GB/T18268.1(IEC61326-1)
Applicable field equipment: Two-wire and three-wire transmitters, voltage source, current source signals
Use environment
(1) There must be no electromagnetic induction in the surrounding environment such as strong vibration, impact, large currents and sparks. The air should not contain media that corrodes chromium, nickel, and silver coatings, and should not contain flammable and explosive substances;
(2) Storage temperature: -40℃~+80℃;
(3) Relative humidity: 10%~90%RH;

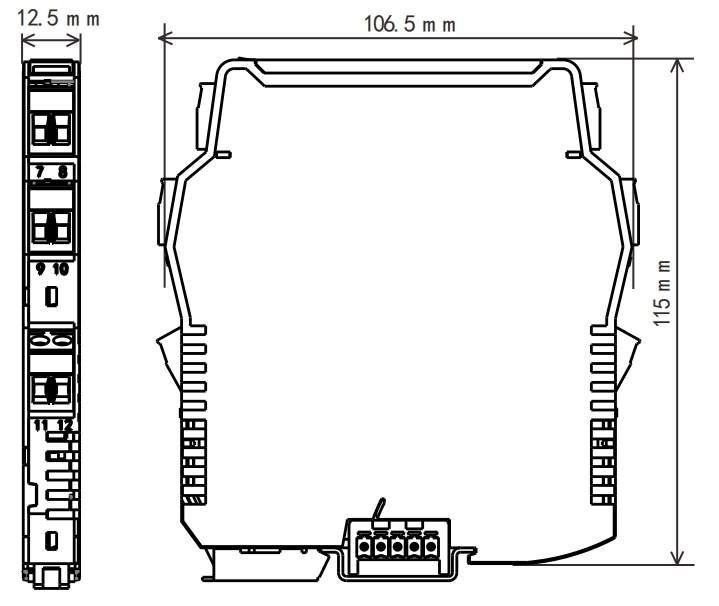

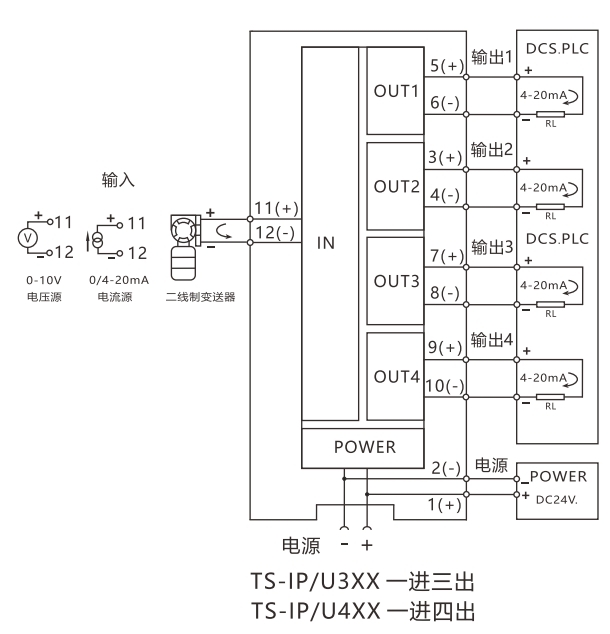

Note :TS-IP/U3XX contains input and output parts 1,2, and 3 only.
Bus power supply function is optional, customers need to specify when ordering, and purchase another bus power supply module.
TS-IP311, TS-IP411 current input isolators, the default input is the current source input mode. If the customer input is connected to a two-wire transmitter, the input selector switch on the side of the housing should be turned down to the "P" position.
